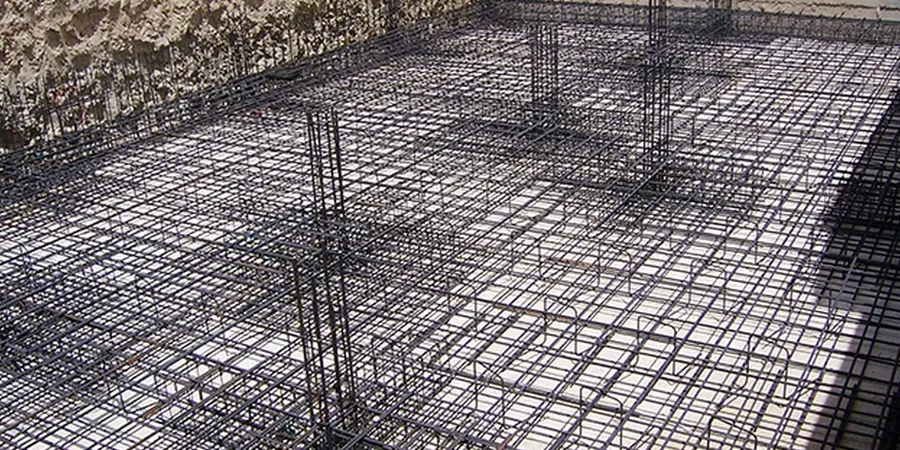

The ground beneath a building site near Todos Santos Plaza behaves differently than a lot carved into the claystone hills of Lime Ridge. Downtown Concord sits on alluvial deposits from the Walnut Creek watershed, while the southeastern neighborhoods climb into weathered bedrock. These contrasts demand a foundation system that bridges the gap between shallow footings and deep piles. A rigid raft foundation distributes structural loads across the entire footprint, reducing differential settlement when soil stiffness varies within the same lot. For engineers working in Concord, the mat slab becomes a practical solution on sites where test pits reveal mixed fill over natural clay or where the water table rises seasonally in the lower basin.
A properly designed mat foundation turns the entire building footprint into a single rigid unit, cutting differential settlement by up to half compared to isolated footings on the same soil profile.
How we work
IBC Chapter 18 and ASCE 7-22 require that mat foundations on compressible soils be analyzed for total and differential settlement under the design earthquake. In Concord, where the USGS maps much of the city within a high liquefaction susceptibility zone, the bearing pressure under a raft must stay below the post-liquefaction residual strength of the critical layer. Our team builds the geotechnical model from direct measurements: SPT blow counts per ASTM D1586, grain size distribution per ASTM D6913, and Atterberg limits per ASTM D4318. We then run finite element models that account for the stiffening effect of the slab itself. The output is a reinforced concrete section with thickened edges where column loads concentrate, and a subgrade modulus that reflects the actual variability across the site, not a textbook assumption.
Local ground factors
Concord sits at roughly 75 feet above sea level in the valley center, but the 2014 South Napa earthquake sent ground accelerations through the entire Concord-Green Valley sub-basin that exceeded 0.15g at soft soil sites. Mat foundations on saturated alluvium face two hazards: liquefaction-induced settlement and edge curl from expansive near-surface clay. The 2019 update to the USGS seismic hazard model raised the design spectral acceleration for Concord at 1-second period, directly affecting mat thickness requirements. Without a site-specific response analysis, a generic raft can tilt, crack grade beams, or punch through a weakened crust layer. Our hazard analysis includes the potential for cyclic softening in the upper 30 feet using the Boulanger-Idriss procedure, so the mat design explicitly accounts for post-shaking bearing loss rather than assuming pre-earthquake conditions persist.
Common questions
What distinguishes a raft foundation from a regular slab-on-grade in Concord?
A slab-on-grade carries light loads directly on the subgrade and is typical for residential garages or patios. A raft or mat foundation is a structural slab designed to carry the entire building load, with heavy reinforcement and thickened zones under columns. In Concord, where soils can transition from stiff clay to loose alluvium within a single lot, the raft bridges those soft spots and prevents differential movement that would crack walls and partitions.
How do Concord’s expansive soils affect mat foundation design?
The near-surface clay in parts of Concord contains montmorillonite, which swells when wet and shrinks when dry. We address this by designing the mat with sufficient stiffness to span over localized heave, specifying a moisture-conditioned subgrade, and in some cases placing a capillary break layer. The geotechnical report provides the swell potential from Atterberg limits and consolidation-swell tests so the structural design reflects real seasonal movement.
Is a mat foundation adequate for a mid-rise building on Concord’s liquefiable soils?
It can be, provided the post-liquefaction settlement analysis shows acceptable values. We run a liquefaction assessment using SPT data and the simplified procedure, then compute ground loss in the critical layers. If the mat can tolerate the calculated differential settlement without structural distress, it is a viable solution. For very thick liquefiable zones, ground improvement like stone columns or deep foundations may be needed instead.
What is the typical cost range for raft foundation design in Concord?
The design package, including geotechnical investigation and structural drawings, generally falls between US$1,110 and US$4,260 depending on site access, number of borings, and complexity of the analysis. Mat foundations on highly variable or liquefiable soils require more extensive modeling, which falls toward the upper end of that range.
How long does it take to move from soil investigation to final mat design?
Field drilling and sampling typically take one to two days on a standard commercial lot. Laboratory testing runs two to three weeks for consolidation and strength parameters. The geotechnical analysis and structural mat design follow over an additional two to three weeks, assuming no unexpected soil conditions. A complete package from mobilization to stamped drawings usually spans five to seven weeks.
