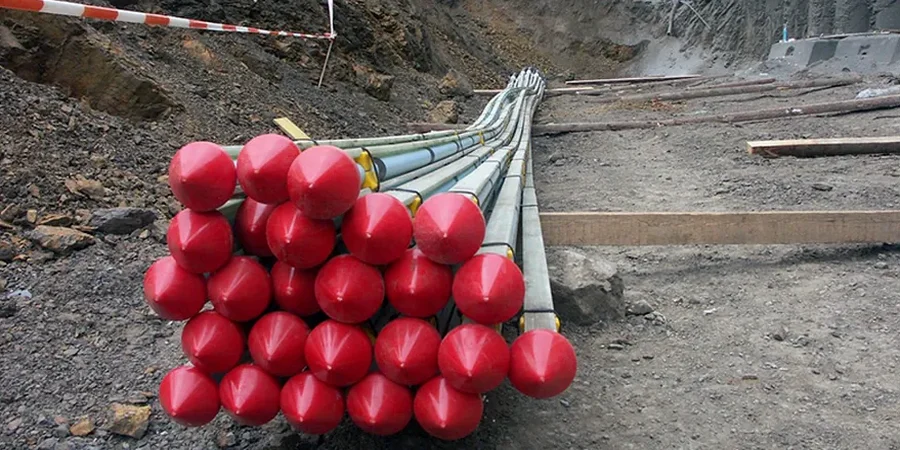

We see too many projects in Concord where anchor spacing gets copied from a job across town without checking the underlying alluvium. Wrong assumption. Concord sits on Pleistocene terrace deposits and Holocene alluvium from the Walnut Creek system. These deposits can shift from dense gravel to soft clay within 100 feet. A tieback that works in Pleasant Hill clay may fail in the sandy lenses near Treat Boulevard. We design active and passive anchors after logging the actual strata from test pits and laboratory classification. No templates. No shortcuts. Every anchor gets a bond length computed for the ground at that specific coordinate.
Bond length is not a catalog value. It is a function of the soil type at the exact depth of the anchor, and in Concord that soil changes every few hundred feet.
Local ground factors
Concord gets 300 days of sun a year, then a few winter storms dump half the annual rainfall in two weeks. That cycle is brutal on temporary shoring. A cut stays stable through September, then December groundwater hits the face and the passive wedge softens. We design for both extremes. The worst case for passive anchors is saturated clay with low undrained shear strength, a scenario we often find in the younger alluvium near the Concord Naval Weapons Station redevelopment area. Active anchors face a different risk: creep. In overconsolidated terrace deposits, stress relaxation can reduce lock-off load over time. We specify lift-off tests at 7 and 28 days to confirm residual load. If readings drop more than 10 percent, the anchor gets re-stressed before the wall is backfilled. That protocol has caught problems on three separate Concord projects in the last five years.
Common questions
What is the difference between active and passive anchors?
Active anchors are pre-stressed after grout reaches strength. They apply a known force to the wall before the soil moves. Passive anchors develop resistance only when the wall deflects and the anchor body displaces relative to the ground. We use active tiebacks for most Concord soldier pile walls because deflection limits are tight near adjacent buildings. Passive systems suit temporary cuts in open ground where some movement is acceptable.
How much does anchor design cost for a Concord project?
Anchor design fees range from US$960 for a small temporary tieback wall with straightforward soil conditions to US$3,850 for a permanent system with double corrosion protection, complex stratigraphy, and a full ASTM D3966 test program. The spread depends on the number of anchor rows, whether performance tests are required, and how much existing geotechnical data is available for the site.
Does the City of Concord require load testing on every anchor?
CBC Section 1810.3.3.3 requires proof testing on all production anchors and performance testing on at least three anchors or five percent of the total, whichever is greater. Concord Building Division enforces this strictly, especially for permanent walls. We coordinate the test schedule so it does not delay the excavation sequence.
What is the minimum unbonded length for a tieback in Concord soils?
Per IBC 1810.3.3.2, the unbonded length must extend at least 5 feet beyond the theoretical active failure plane, with an absolute minimum of 15 feet. In practice, Concord alluvium often requires 18 to 22 feet to ensure the grouted bond zone sits in competent material outside the wedge. We verify the failure plane geometry with a slope stability model before setting the final length.
