LEARN MORE →In Concord, California, a city experiencing steady residential and commercial growth east of San Francisco, the category of Foundations encompasses the critical engineering, design, and construction of substructures that transfer building loads safely to the ground. This discipline is paramount here due to the region's complex seismic profile and variable soil conditions, which demand more than standard prescriptive solutions. A robust foundation system must counteract not only vertical dead and live loads but also the lateral forces and ground accelerations generated by the nearby Concord-Green Valley and Calaveras fault systems. For property owners and developers, investing in a technically sound foundation is the primary defense against differential settlement, structural cracking, and catastrophic failure during an earthquake, ensuring the longevity and safety of any structure built on Concord's dynamic landscape.
The local geology of Concord presents a challenging mosaic that directly dictates foundation strategy. Much of the city is underlain by expansive clay soils, particularly those derived from the alluvial fans and basin deposits of the Central Valley's eastern edge. These clays are notorious for their shrink-swell behavior, expanding when wet and contracting during dry summers, which can exert immense uplift pressure on shallow footings. In other areas, loose, unconsolidated sands and silts pose a risk of liquefaction during a significant seismic event, a phenomenon where saturated soil temporarily loses strength and behaves like a liquid. This variability means a site-specific geotechnical investigation is not just a formality but an absolute necessity, with findings often ruling out conventional spread footings in favor of specialized, deep foundation solutions.
The regulatory framework governing foundation design in Concord is stringent, anchored by the California Building Standards Code (Title 24), which incorporates the International Building Code (IBC) with state-specific amendments. Chapter 18 of the California Building Code (CBC) is the definitive reference, mandating thorough soil investigations and dictating structural design parameters based on seismic design categories that are among the most demanding in the nation. For deep foundations, the CBC references the International Building Code's provisions for pile foundation design, which must be engineered to resist both axial and lateral loads determined by site-specific response spectra. Compliance with these codes, enforced by the City of Concord's Building Division, requires detailed calculations and stamped drawings from a licensed geotechnical and structural engineer, ensuring every foundation is designed to withstand the Maximum Considered Earthquake (MCE) ground motion for the region.

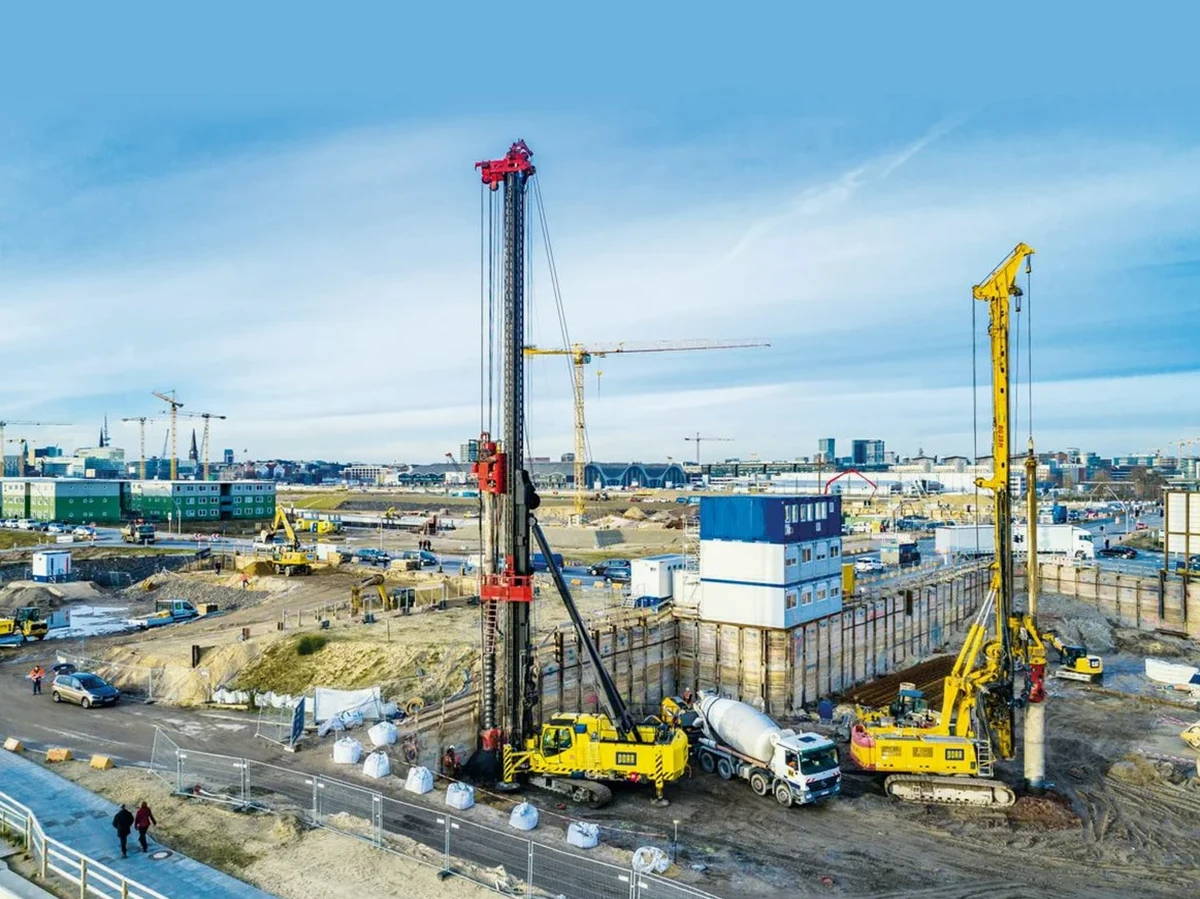

The types of projects in Concord that necessitate advanced foundation engineering are diverse, ranging from single-family home additions on hillside lots with high plasticity clays to multi-story mixed-use developments in the downtown core and large-scale tilt-up warehouses in the industrial districts. Any structure exceeding two stories, or those on sites with identified geohazards, will almost certainly require a deep foundation system. Engineered solutions like drilled cast-in-place piles or driven steel H-piles bypass the problematic surface strata, bearing on dense sand layers or bedrock at depth. For heavily loaded columns in commercial buildings, a pile foundation design is not merely an option but a code-mandated requirement to control total and differential settlement within acceptable limits, typically half an inch or less, as specified by the project's structural engineer of record.
Concord's soil conditions are critical due to widespread expansive clays with high shrink-swell potential and loose alluvial sands susceptible to liquefaction during earthquakes. These local geology traits can cause significant structural movement, cracking, or even catastrophic failure if not properly addressed through a site-specific geotechnical investigation and an appropriately engineered foundation system, as mandated by the California Building Code.
Deep foundation construction in Concord is governed by the California Building Standards Code (Title 24), specifically Chapter 18 of the California Building Code (CBC). This code incorporates IBC provisions with strict seismic amendments, requiring foundations to be designed for Maximum Considered Earthquake (MCE) ground motions. All plans must be stamped by a licensed engineer and approved by the City of Concord's Building Division.
The determination comes from a geotechnical report, which is required by the CBC for most projects. The report analyzes soil bearing capacity, expansive potential, and liquefaction risk. If near-surface soils are weak, highly expansive, or compressible, the engineer will recommend a deep foundation like piles to bypass these strata and bear on competent material, ensuring settlement remains within acceptable limits.
The process begins with a geotechnical investigation involving soil borings and lab testing to create a report with engineering recommendations. A structural engineer then designs the foundation per the CBC, producing stamped drawings. After city plan check approval, a specialty contractor installs the system under special inspection and materials testing to verify compliance, culminating in a final inspection before backfilling.
We serve projects across Concord California and surrounding areas.
